Internal of the 41A

ultrasonic

By ultrasonic

 Share

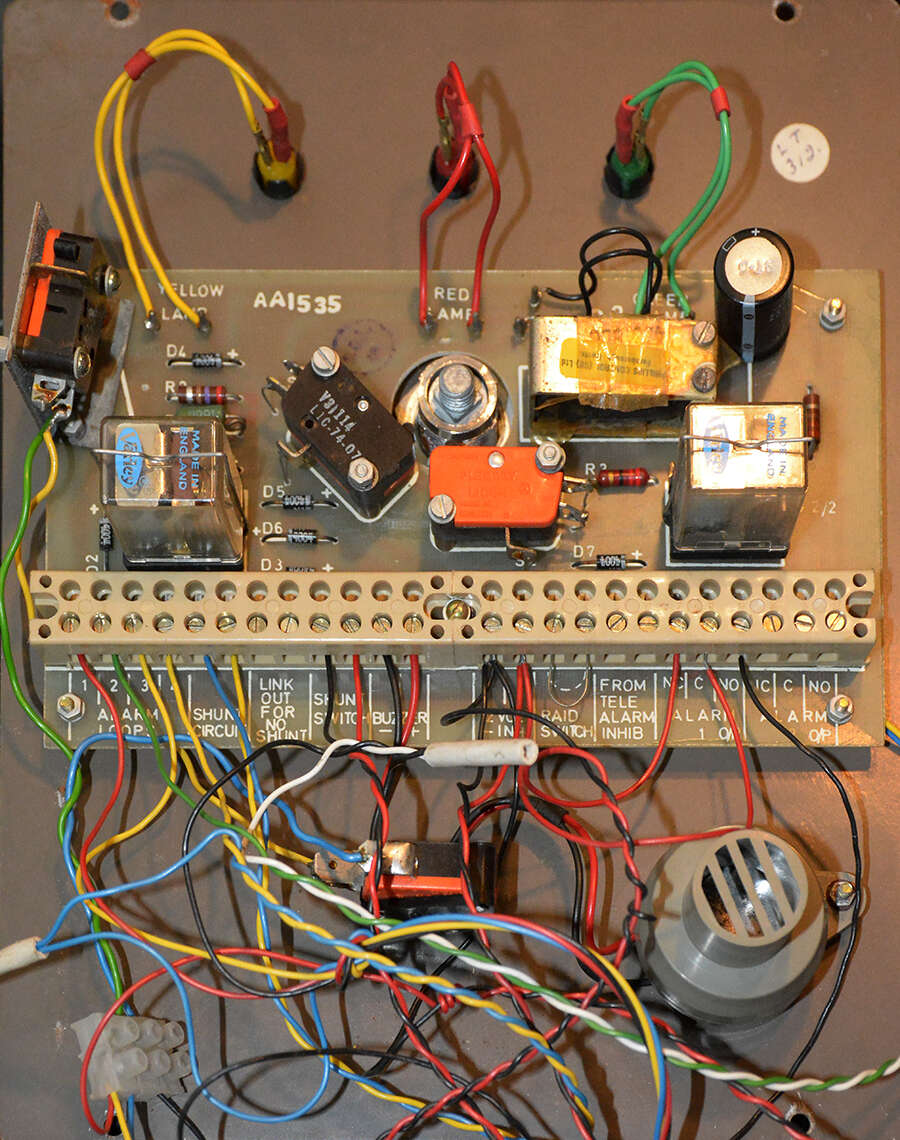

One zone cct, one shunt, bell relay, key switch with solenoid to avoid setting in fault, or when call alarm engineer shows (auto dialer reset)

Copyright

© ultrasonic

From the album:

OLD alarm Equipment details

· 2 images
  • 2 images
  • 1 comment
  • 7 image comments

Photo Information

View photo EXIF information
 Share

Recommended Comments

Jack b

Jack b 8

Posted

This is class to take a look at. Always loved the shorrock gear, finally obtained one of their bell box's recently too.



Jack b

Jack b 8

Posted

I have just noticed that the keyswitch is missing the plastic arm that pushes the Microswitch in, and that also allows the solenoid to lock the key switch
