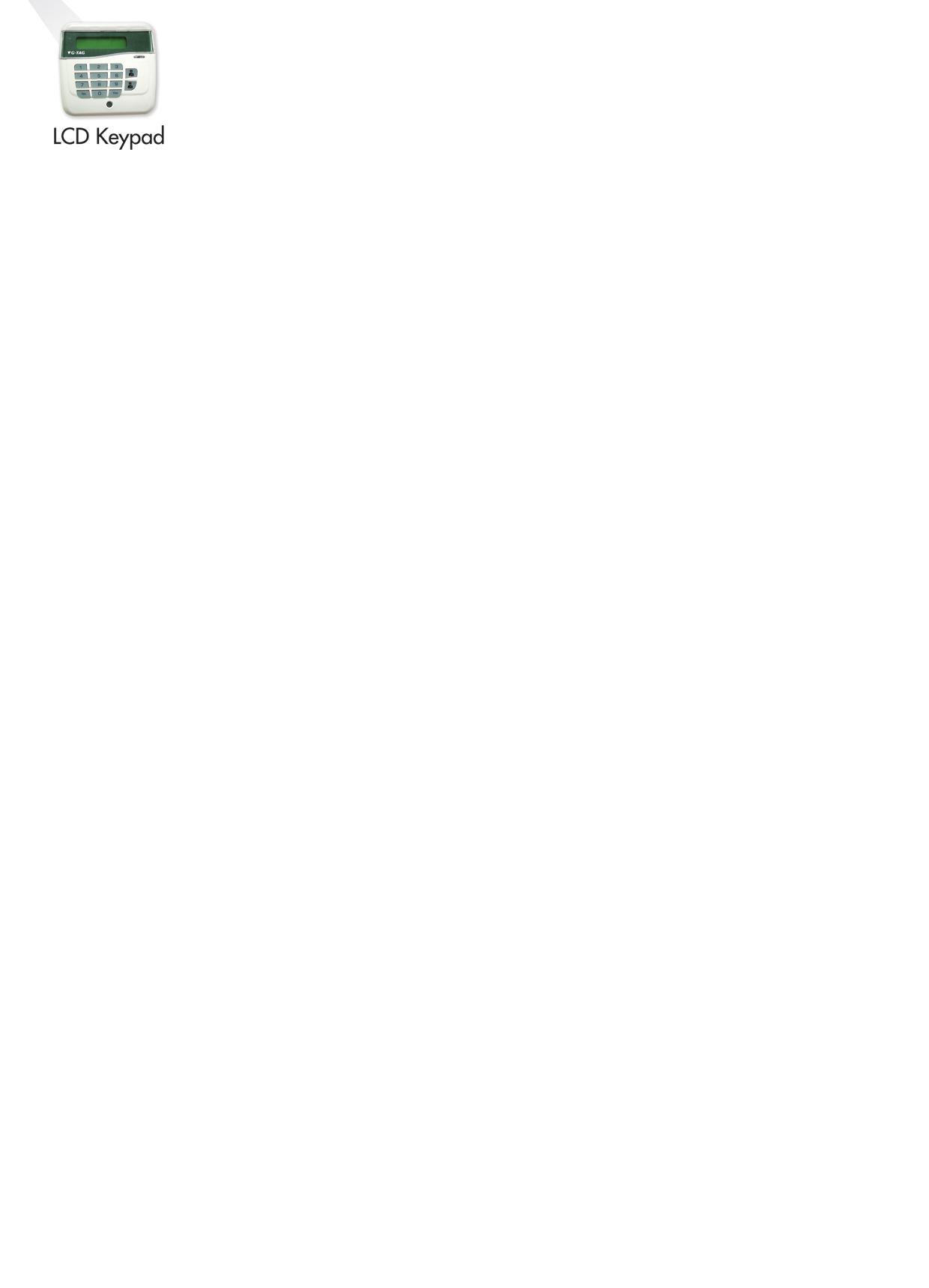

graham99114 Posted January 24, 2008 Share Posted January 24, 2008 looking to add an external G-TAG reader to the remote Key Pad of a gardtec 490X the wires on the end of the cable from the reader are coloured white / red / yellow / black / blue / Green the instructions state (for a cable length < 7.5m) that RED goes to SET BLUE goes to ANT YELLOW goes to ANT BLACK goes to OV but the terminals labelled on the RPK are labelled Terminal Block 2 A1 A2 Terminal Block 1 A3 A4 SET D2 D1 0V 12V ZONE the red to SET and black to 0V are straight forward - but where do the BLUE and YELLOW go ? Any Ideas Link to comment Share on other sites More sharing options...
graham99114 Posted January 25, 2008 Author Share Posted January 25, 2008 looking to add an external G-TAG reader to the remote Key Pad of a gardtec 490Xthe wires on the end of the cable from the reader are coloured white / red / yellow / black / blue / Green the instructions state (for a cable length < 7.5m) that RED goes to SET BLUE goes to ANT YELLOW goes to ANT BLACK goes to OV but the terminals labelled on the RPK are labelled Terminal Block 2 A1 A2 Terminal Block 1 A3 A4 SET D2 D1 0V 12V ZONE the red to SET and black to 0V are straight forward - but where do the BLUE and YELLOW go ? Any Ideas managed to find out BLUE&YELLOW GO TO A1 & A2 RED goes to SET BLACK goes to OV Link to comment Share on other sites More sharing options...
Guest anguscanplay Posted January 25, 2008 Share Posted January 25, 2008 managed to find out BLUE&YELLOW GO TO A1 & A2 RED goes to SET BLACK goes to OV was it the instruction manual gave it away ? Link to comment Share on other sites More sharing options...
graham99114 Posted January 25, 2008 Author Share Posted January 25, 2008 nope - instruction manual details were as per in first post - eventually got the info for the supplier technical help line Link to comment Share on other sites More sharing options...
