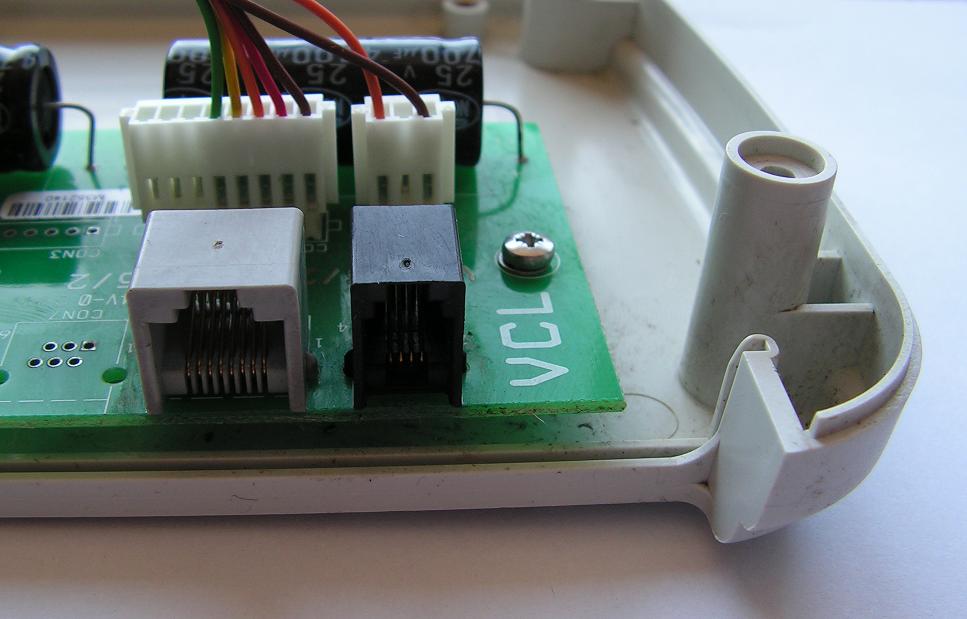

MCS777 Posted March 20, 2009 Share Posted March 20, 2009 Hello you all, I'm trying to hookup a Orbiter G18CPVC1-00 to a Max0124-00. On the rear there is a RJ45 dataconnector, does anyone know which pins are the RS485 ? Please see photo. Thanks ! Jaap Link to comment Share on other sites More sharing options...
ian.cant Posted March 20, 2009 Share Posted March 20, 2009 Hello you all,I'm trying to hookup a Orbiter G18CPVC1-00 to a Max0124-00. On the rear there is a RJ45 dataconnector, does anyone know which pins are the RS485 ? Please see photo. Thanks ! Jaap I dont recognise the pcb in that picture but im pretty sure the connector your referring to is for alarms inputs not for telemtry control assuming the Max0124 is the keyboard? IUm probably wrong! Link to comment Share on other sites More sharing options...
MCS777 Posted March 20, 2009 Author Share Posted March 20, 2009 Hi there Ian, PCB showed is the ( dismantled ) keyboard. Jaap Link to comment Share on other sites More sharing options...
DannyTheTech Posted March 20, 2009 Share Posted March 20, 2009 Hello you all,I'm trying to hookup a Orbiter G18CPVC1-00 to a Max0124-00. On the rear there is a RJ45 dataconnector, does anyone know which pins are the RS485 ? Please see photo. Thanks ! Jaap Depends on what version that is. If i remember right, it was either the standard: 2 + 3 - 5 Gnd Or a VCL one of: 5 + 6 - 7 GND Sorry for the vagueness its been a while. , D Link to comment Share on other sites More sharing options...
MCS777 Posted March 20, 2009 Author Share Posted March 20, 2009 OK Danny ! Counting from left to right pins 1 - 2 - 3 are not used. So it has to be the second one. Gonna try, will keep you posted. Thanks ! Jaap Link to comment Share on other sites More sharing options...
camullins Posted March 20, 2009 Share Posted March 20, 2009 Hi MCS777 If i remember rightly It's the 3 pins on the right. RS485 POS NEG & GND Not sure in which order. Link to comment Share on other sites More sharing options...
MCS777 Posted March 21, 2009 Author Share Posted March 21, 2009 Hi there, I gathered some additional info. Not all 0124's are suitable for direct mode control. Identified by yes / no sounding a beep when power is connected. Mine sounds, I was instructed to get me a Maxcom Gold unit. Sound familiar ? I would prefer working in direct mode, can control be converted ? Link to comment Share on other sites More sharing options...
