Texecom Excel + Dialler connectionI want

[Guest RankzeroX]

Hi,

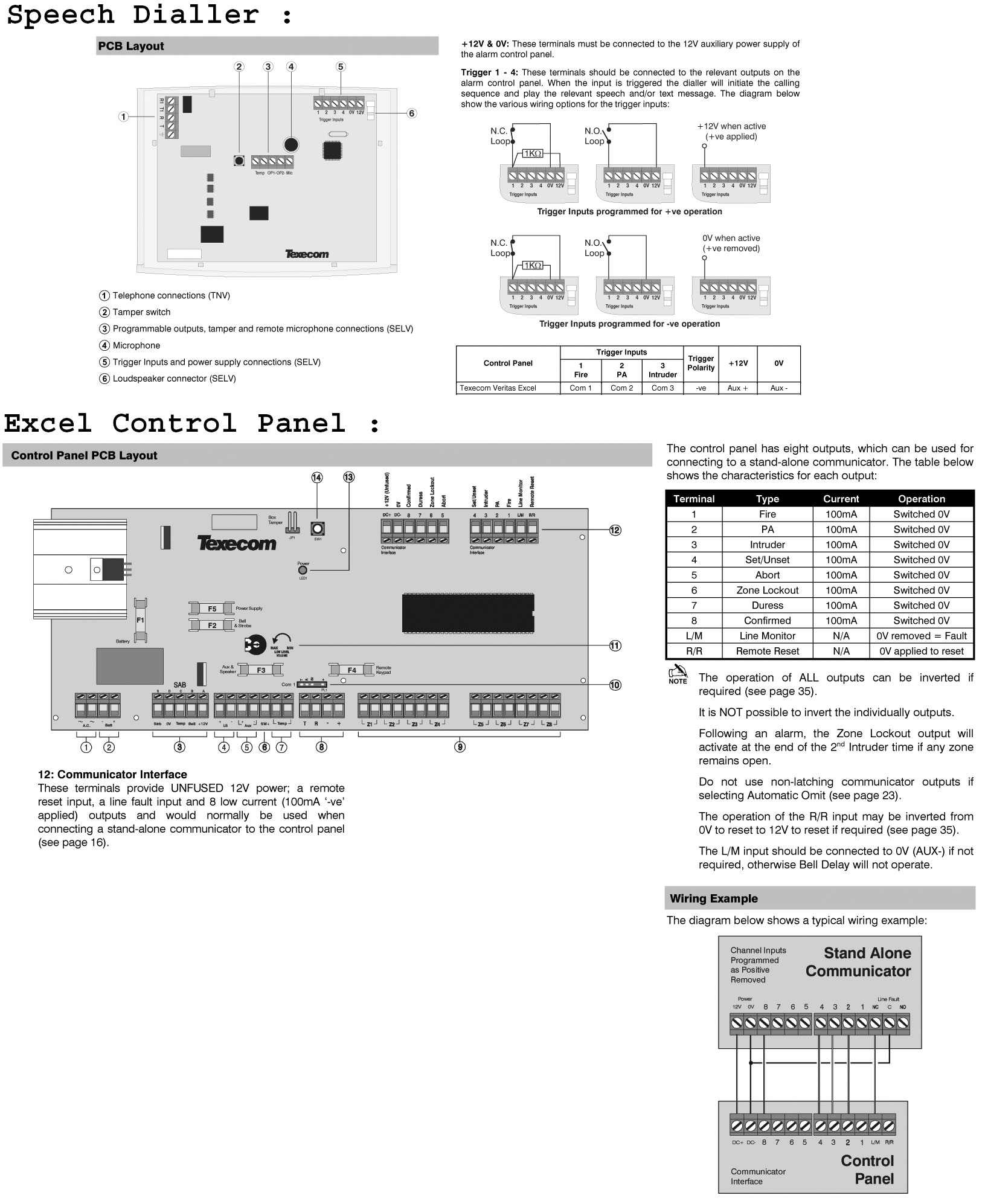

I want to connect my Texecom Speech Dialler to my Texecom Veritas Excel Control Panel BUT I don't understand how to do it (except for the Tamp ). I'm french and the english manual is not enough explicit, as you can see below

Can somebody help me ?

Friendly, Rank.

[breff]

if you connect digi outputs 1-3 to dialler inputs 1-3, input 1 Fire, input 2 Personal Attack, input 3 Alarm. 0v and 12v on dialler to 0v and 12v on communicator outputs.

Message 1 is your Fire message, 2 PA and 3 Alarm.

[Biker C]

rankzerox,

Comme Breff dit,

Si vous connectez des productions du communicator 1-3 a entrees du dialer 1-3, entree un feu, entree deux sont pris de panique, entree trois intrus, ov et 12v sur dialer a ov et 12v sur productions de communicator.

Message un est votre message du feu, deux sont message de la panique, trois sont message de l'intrus.

Je suis desole j'ai limite francais.

Clive

[Guest RankzeroX]

Thank you all !

It seems very easy but what's about the trigger inputs programmed for -ve operation and particulary the resistor ???

I only have an alarm (ni fire, no PA) so I must left the digi outputs 1-2, isn't it ?

Friendly, Rank.

[breff]

ignore the resistors and polarity, it will work out of the box, if you only have intruder just wire 3 to 3

[Guest RankzeroX]

Ok, I will test that tomorrow, I install my bellbox and I connect the whole!!

thank you still for all those informations.

Friendly, Rank.

[Guest RankzeroX]

All is OK !!!!

Thanks again ;-)
