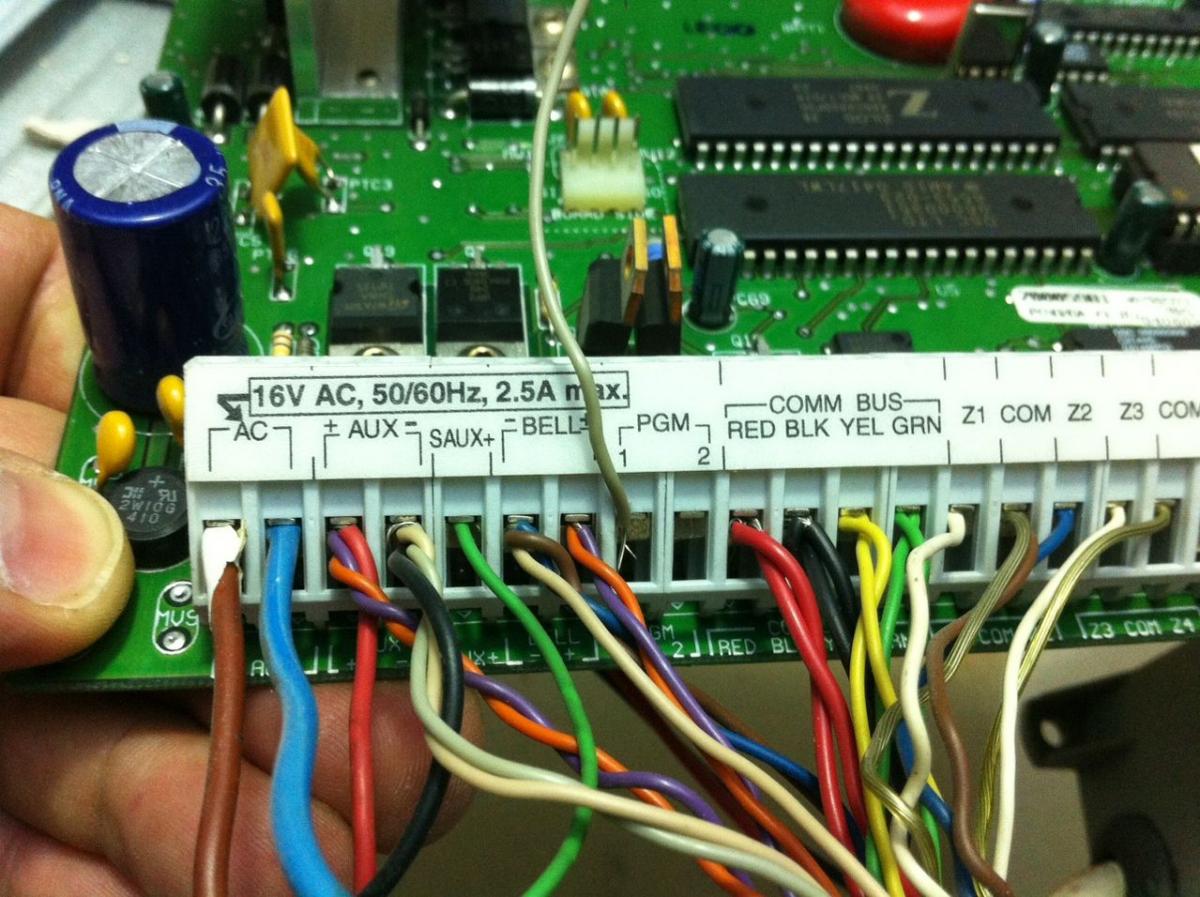

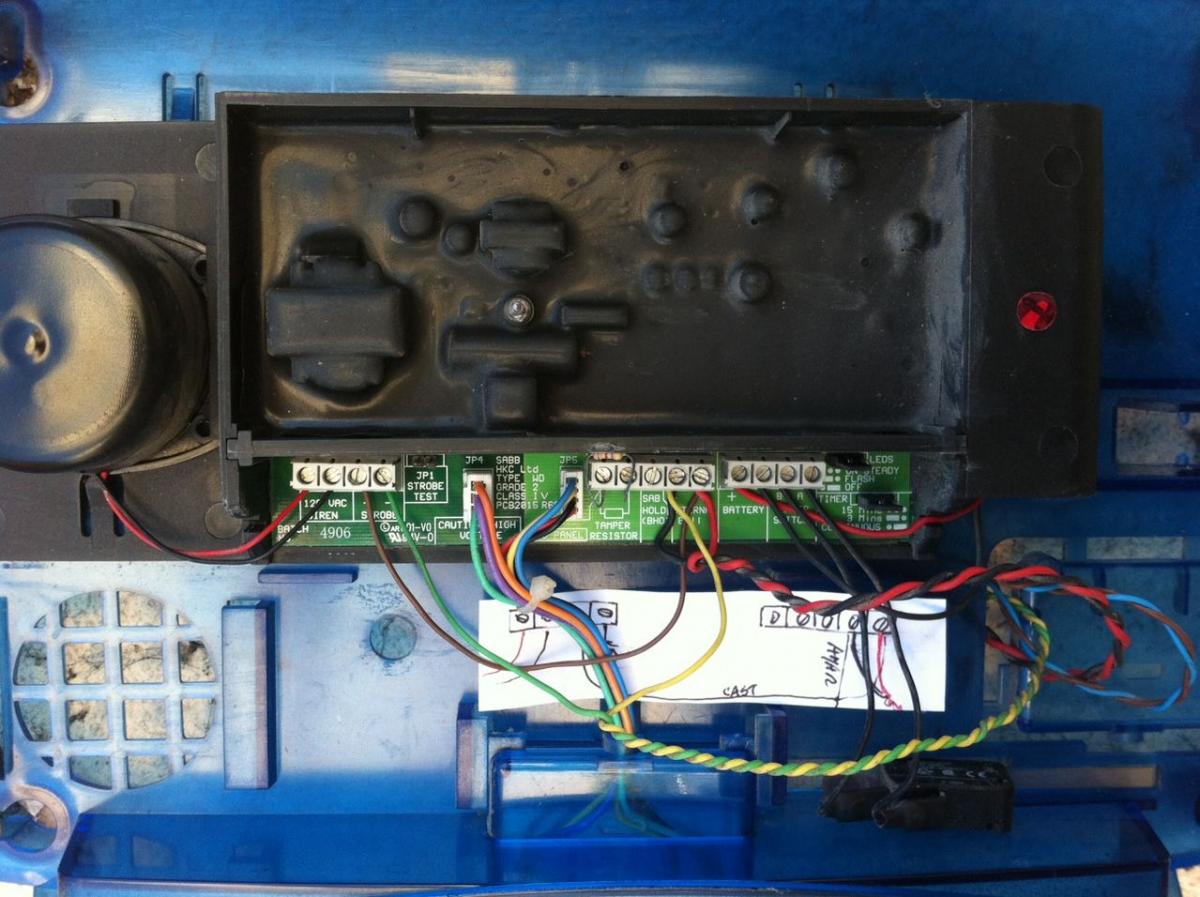

rucanunes Posted May 18, 2014 Posted May 18, 2014 Hello,Could someone please tell me how to connect these two systems?I have something wrong; when the alarm it's activated the bell rings for 5 seconds (no blue light) but than flashes a blue light and goes silent.I have attached the pics of the two boards so you can help me better.All the other functions of the alarm are working fine.This is an old installation that it was not made by me.I really appreciate some help please!?Alarm circuit: http://postimg.org/image/h9lhqh739/ Bell circuit: http://postimg.org/image/9y61h07wp/ Regards,Raul Nunes
james.wilson Posted May 18, 2014 Posted May 18, 2014 Bell Panel Strobe + Bell + Strobe - Bell - SAB HOLD Aux - Bell + Bell + Bell - Bell - securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount.
al-yeti Posted May 19, 2014 Posted May 19, 2014 What hasn't worked? Did you close all covers and reset?
james.wilson Posted May 20, 2014 Posted May 20, 2014 i must admit dont know the panel but i know i know the bell well. securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount.
Adi Posted May 20, 2014 Posted May 20, 2014 Surely programming. I really can't be ar**** with it anymore.
rucanunes Posted May 22, 2014 Author Posted May 22, 2014 Yes, it was a programming problem! Thank you very much!!!
rucanunes Posted May 22, 2014 Author Posted May 22, 2014 No I have another problem, this one is a little strange!! I have zone 1 and zone 3 connected to the board. Zone 1 it's working fine! Zone 2 deleted. Zone 3 it's somewhat strange!!! I have zone 3 connected like this: Red ------------AUX+ Black----------- AUX – Blue ----------- Z3 Brown----------COM The sensor has a 5600 resistor between blue and brown cables. The sensot warns me if someone walks by that zone (two beeps at the keypad) But when I try to turn the alarm on, it says "Close zone 3 before arming".... If I change EOL options it tells me "Short in zone 3" I also have an exclamation point (!) in zone 3. Any suggestions on how to fix this problem? Regards! Raul Nunes
al-yeti Posted May 22, 2014 Posted May 22, 2014 Did you wire it same as zone 1? Also swap sensors incase it's a problem with the sensor , otherwise if both zones are the same then you may have wired them different by mistake
