Castle omega 5 wiring help

[james.wilson]

Also the tamper return will be pos on that panel

[Jack b]

28 minutes ago, james.wilson said:

Also the tamper return will be pos on that panel

Im guessing there was an especially made sab module that would go with the panel?

[sixwheeledbeast]

SCB where designed that way.

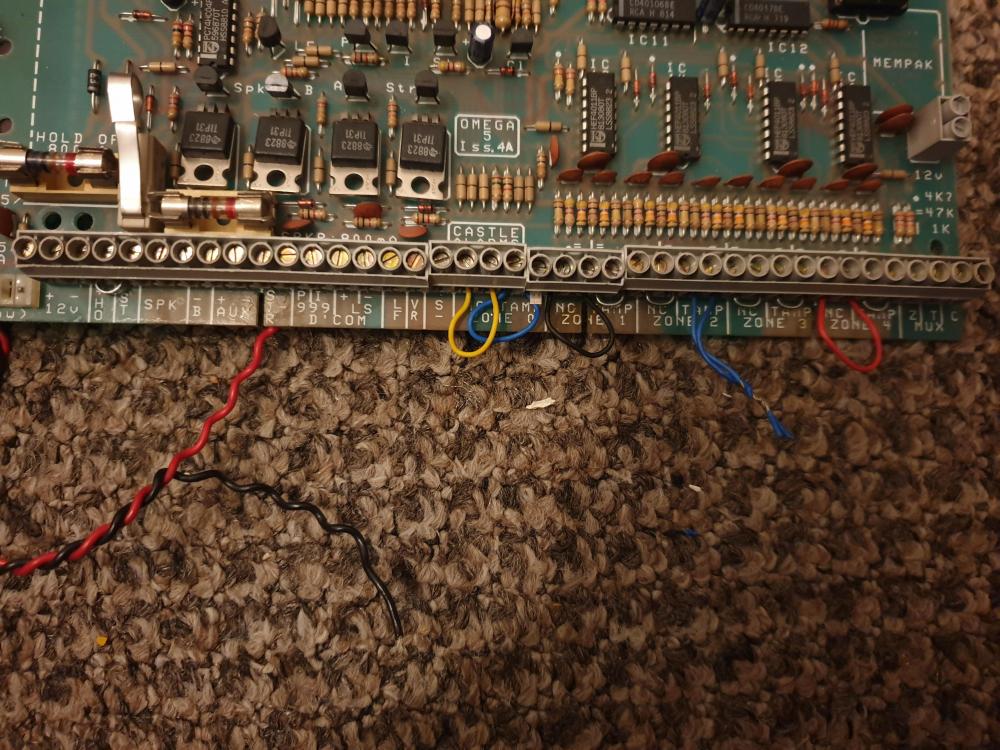

Tamper return will be +ve if the HO is +ve, you can see the tamper link is still fitted

[al-yeti]

9 hours ago, Jack b said:

Anyone out there know how to wire up a bell box sab to a omega 5 panel?

You try the phone number?

[Jack b]

1 hour ago, al-yeti said:

You try the phone number?

Hmmmmmm no but i might just give it a try

[Jack b]

5 hours ago, sixwheeledbeast said:

SCB where designed that way.

Tamper return will be +ve if the HO is +ve, you can see the tamper link is still fitted

I thought SCBs were the ones that had the voltage going directly to the bell box and when the alarm sets off, the hold off is cut sounding the bell using its own battery and SABs were the ones that had the trigger voltage?

[al-yeti]

3 hours ago, Jack b said:

I thought SCBs were the ones that had the voltage going directly to the bell box and when the alarm sets off, the hold off is cut sounding the bell using its own battery and SABs were the ones that had the trigger voltage?

You mean scb mode uses internal battery to activate sounder and hold off is just charging



And sab mode draws power from panel hold off when bell activated





Both have a separate trigger



Or something like that

[Jack b]

21 minutes ago, al-yeti said:

You mean scb mode uses internal battery to activate sounder and hold off is just charging



And sab mode draws power from panel hold off when bell activated





Both have a separate trigger



Or something like that

Yep

[sixwheeledbeast]

Self Contained Bell, uses it's own lead acid battery to sound the siren when triggered from panel.

Self Activating Bell, uses the panel voltage to sound the siren when trigger is low, or "hold off" voltage is removed which "self activates" the bell from it's NiCd. Many modern SAB's have a SCB style mode.

[Jack b]

11 minutes ago, sixwheeledbeast said:

Self Contained Bell, uses it's own lead acid battery to sound the siren when triggered from panel.

Self Activating Bell, uses the panel voltage to sound the siren when trigger is low, or "hold off" voltage is removed which "self activates" the bell from it's NiCd. Many modern SAB's have a SCB style mode.

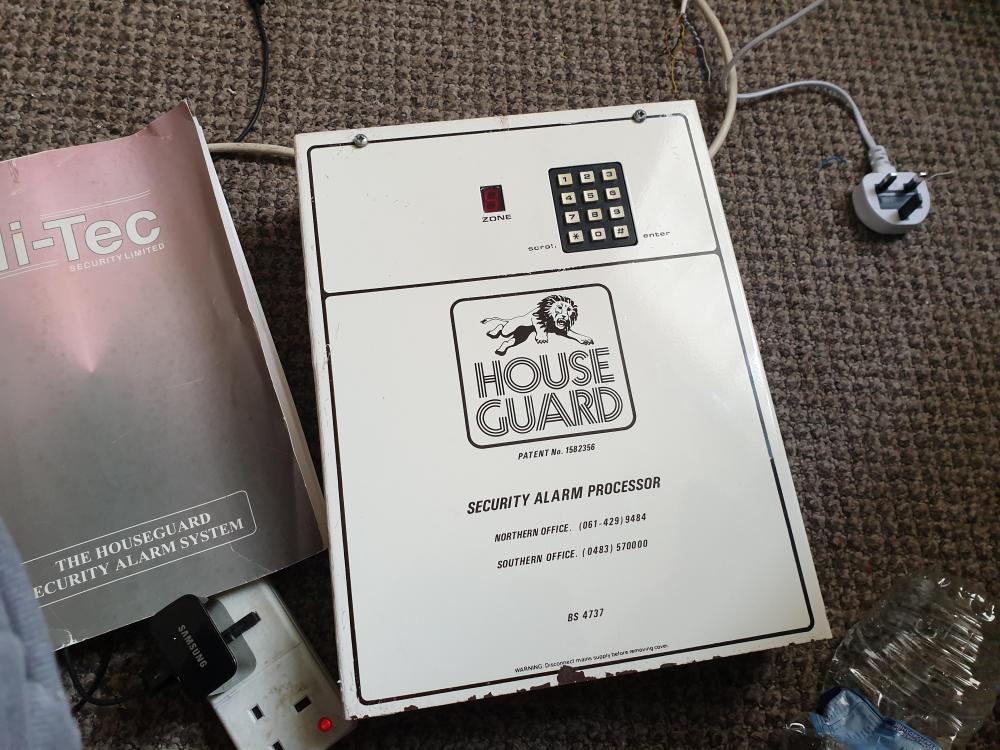

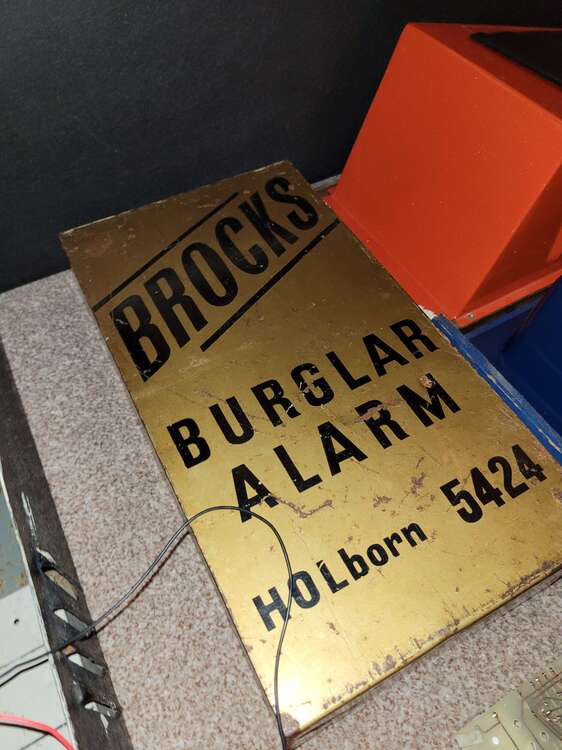

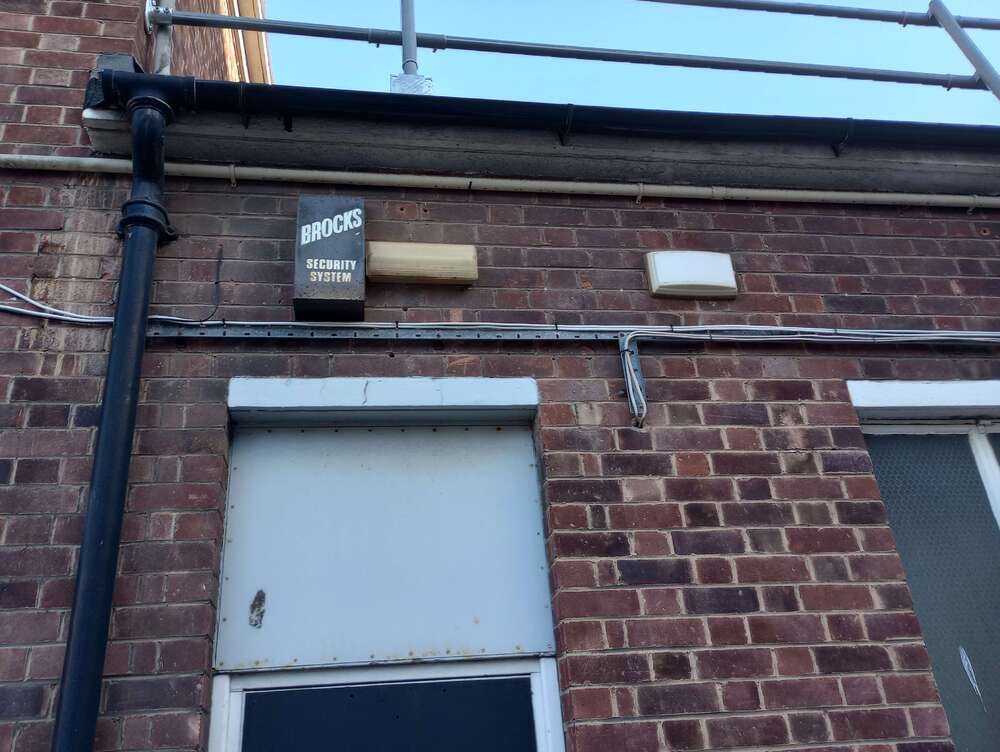

You'd find SCBs in chubbs, AFAs, brocks and all that and you'd find SABs in thorns, Abels, modern alarms, etc.
