Viper Wiring to Texecom Panel


Recommended Posts

Good morning all

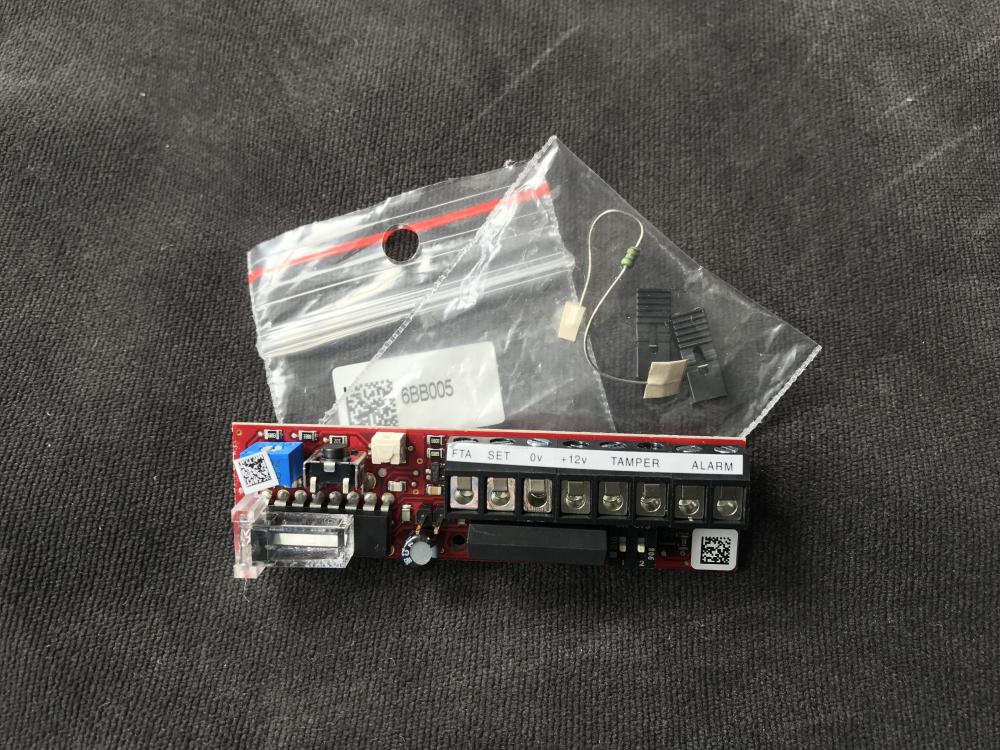

Advise please. Wiring a Viper GLX shock sensor 8 wire to a Texecom Premier Elite 24. I am using EOL wiring in the zones. I assume I wire in the 4K7 & 2k2 resistors as I have on PIR’s.



However Terminal 7 the set input to remotely control the LED and terminal 8 first to alarm. How should I wire these and were do I connect on the panel? There is also a resistor that comes with the Viper, what about this?



Thank you










Link to comment
Share on other sites

I personally still connect the set even if you only use one, it's good to see if the device has been activated even if unset.

As above FTA is a stand alone bus that doesn't go back to the controls.

You will likely need to invert any outputs as PE24 only has -ve sinking.
