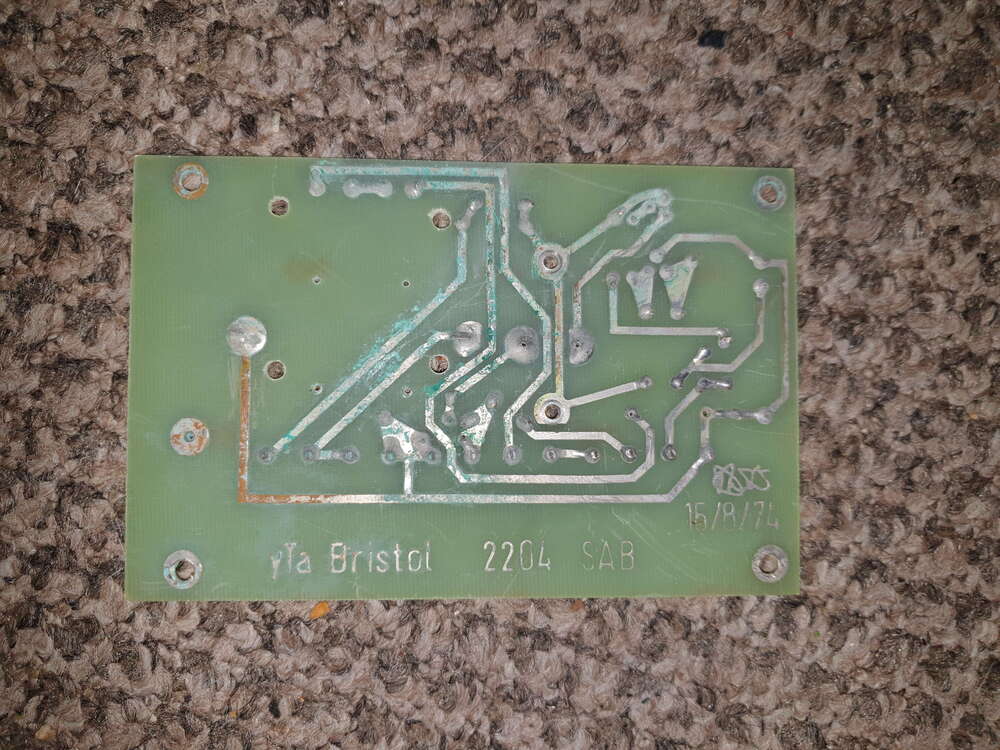

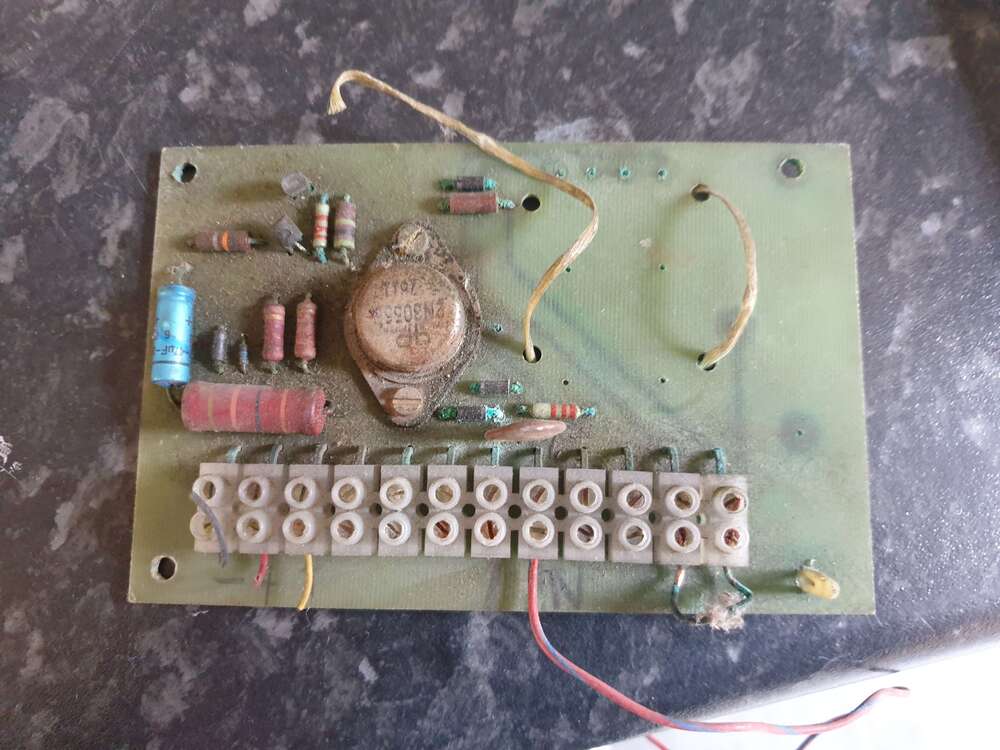

Jack b Posted January 17, 2022 Share Posted January 17, 2022 (edited) Hello, was wondering if anyone could tell me about this sab module? Found it in an SSW bell box; I've figured out most of the connections but there are still some that elude me. This is what I've got so far T1 - 0v T2 - 12v T3 - Positive trigger T4 - Tamper return? T5/T6 - Extra tamper? T7/T8 - Bell T9/T10 - Polarity link for tamp return? T11/T12 - Battery enable There's also 4 solder joints above where the battery was once fitted - is that where the tamper switches go? Any help would be much appreciated. Edited January 17, 2022 by Jack b Quote Link to comment Share on other sites More sharing options...
sixwheeledbeast Posted January 17, 2022 Share Posted January 17, 2022 No idea, never seen one. T4 and 5 are just a link. T8 and 9 are -ve rails, one would likely be for the bell. Four top pins could have been SAB battery? One side of top pins is T6 the other is via the 1W resistor to -ve It's the era I'd expect tamper switches to be microswitches with flying leads from terminals. It would be logical to have all the field wiring on the first few terminals and the rest for the bell internals. 1 Quote Link to comment Share on other sites More sharing options...
Jack b Posted January 17, 2022 Author Share Posted January 17, 2022 2 hours ago, sixwheeledbeast said: No idea, never seen one. T4 and 5 are just a link. T8 and 9 are -ve rails, one would likely be for the bell. Four top pins could have been SAB battery? One side of top pins is T6 the other is via the 1W resistor to -ve It's the era I'd expect tamper switches to be microswitches with flying leads from terminals. It would be logical to have all the field wiring on the first few terminals and the rest for the bell internals. Originally i thought those solder joints had something to do with the battery but i couldn't think how it would. One side seems to go to the large resistor which is connected to the - VE. So i thought maby the solder joints is where the cover and rear tamper would go, then any additional tamper switches would go in T5 and T6 as T5 is shared with T4 and T6 goes to those pins. As for T9 and 10, they had a link between them. Fell off though as the copper was weak. Quote Link to comment Share on other sites More sharing options...
sixwheeledbeast Posted January 17, 2022 Share Posted January 17, 2022 OOI. Do you refurb these? Would it matter if the PCB wasn't period? Quote Link to comment Share on other sites More sharing options...
Jack b Posted January 18, 2022 Author Share Posted January 18, 2022 20 hours ago, sixwheeledbeast said: OOI. Do you refurb these? Would it matter if the PCB wasn't period? I refurb them yeah, bell boxs, bells and panels too. I think it matters if the PCB wasnt period. Quote Link to comment Share on other sites More sharing options...
james.wilson Posted January 19, 2022 Share Posted January 19, 2022 Is this for a museum? Quote securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount. Link to comment Share on other sites More sharing options...
Jack b Posted January 20, 2022 Author Share Posted January 20, 2022 On 19/01/2022 at 04:07, james.wilson said: Is this for a museum? Nah, do it for enjoyment Quote Link to comment Share on other sites More sharing options...
