How do you wire a panic switch to a Bosch 6000 Alarm Panel

[Yoko Zuna]

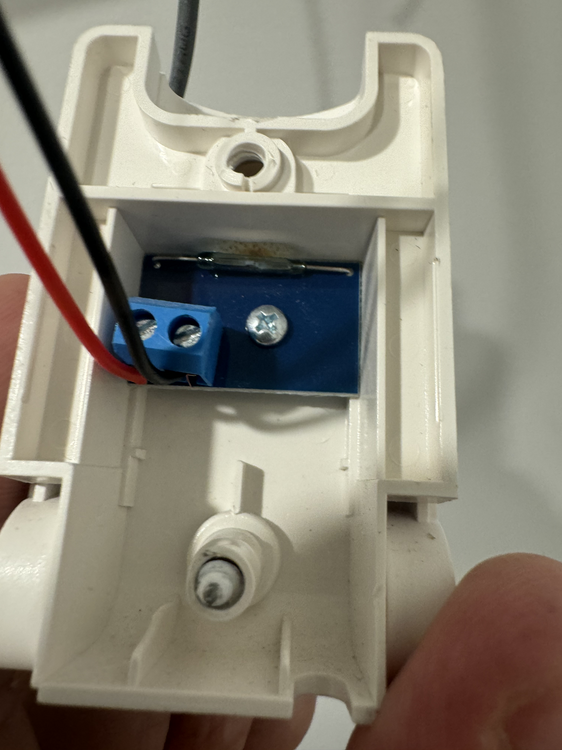

1. How do I install a SEN3045-W Panic Switch to a Bosch 6000 alarm panel?

2. Should it be wired to a zone connection?





Note: The Switch only supports 2 wires

[Yoko Zuna]

Note: The Switch only supports 2 wires

[MrHappy]

neither the controls or the button are something we'd see in the UK



one circuit wire into the left terminal,

alarm value resistor across both the device terminals,

a tamper value resistor the right terminal,

2nd circuit wire soldiered on other side of the tamper resistor



this would be double end of line resistors, you product or market place may do this differently...



Edited May 5 by MrHappy

[Yoko Zuna]

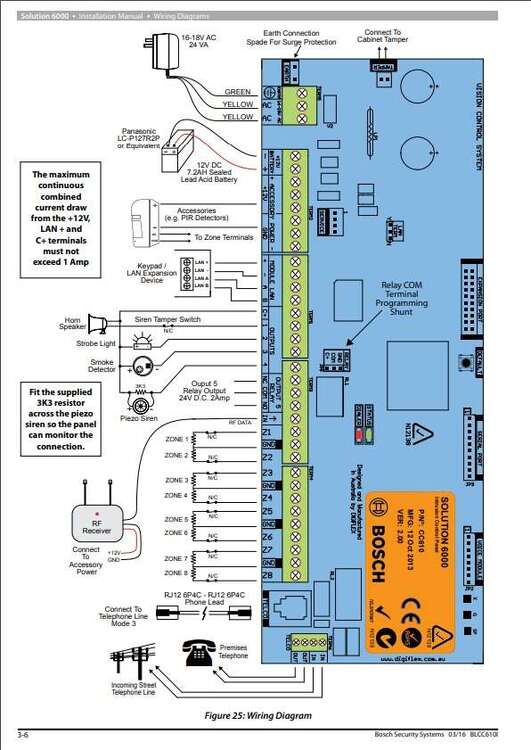

Mr Happy, are you able to draw this for me? What about the wiring into the Bosch 6000 panel?

Edited May 5 by Yoko Zuna

[MrHappy]

normally closed



put 1 wire off the circuit on the terminal with the red wire & the other on ther terminal with the black wire

[james.wilson]

according to the diagrom provided above its single resistor non eol

so
